Marketing Flyers

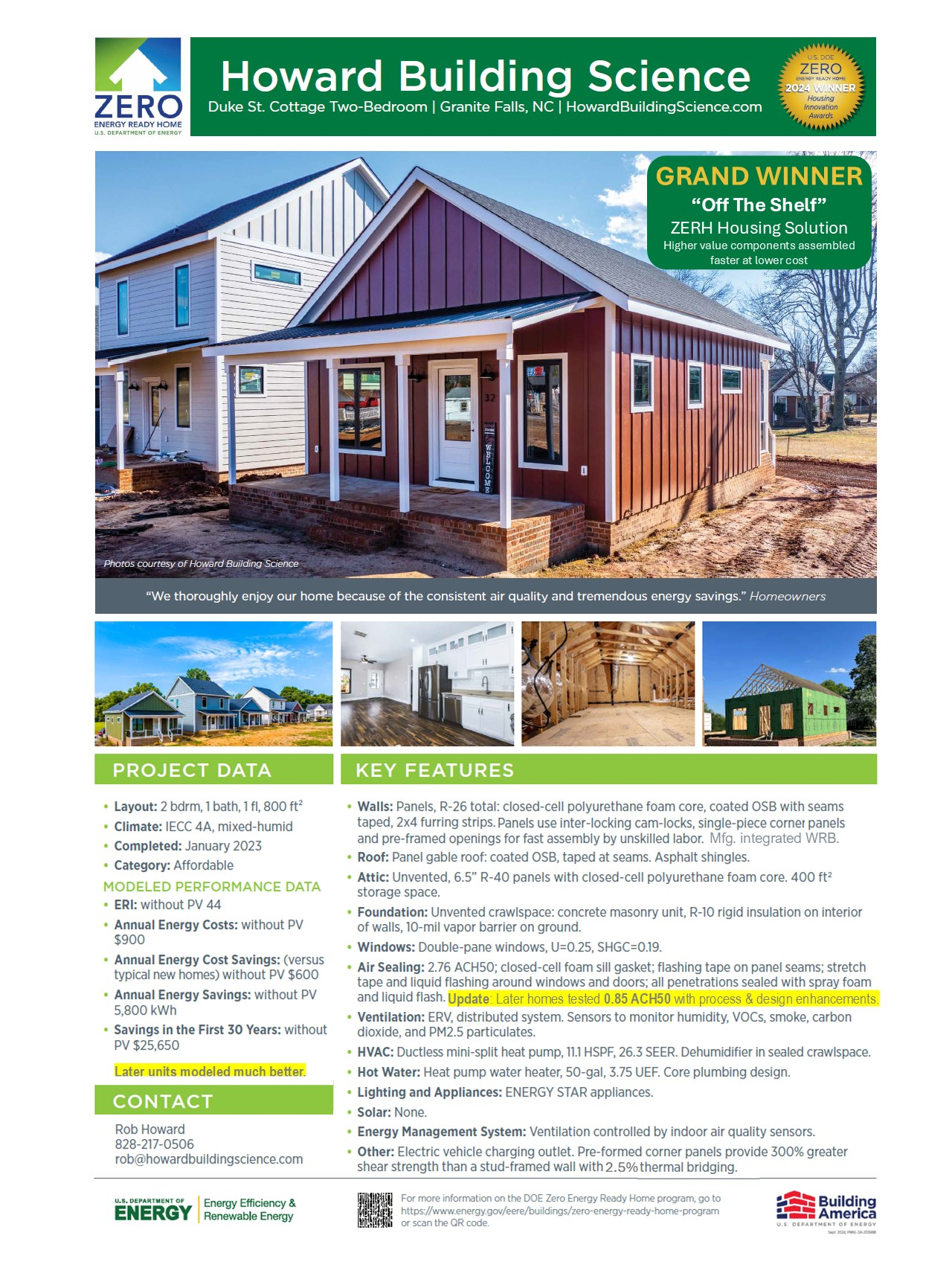

Flyer describing the Grand Winner of the Dept of Energy ZERH Housing Solution competition (2024)

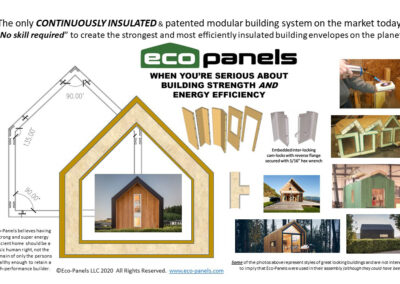

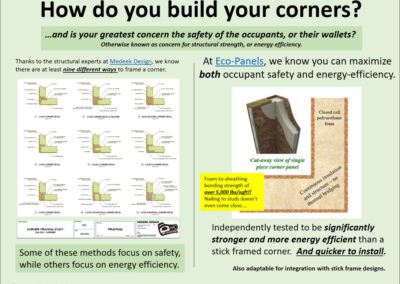

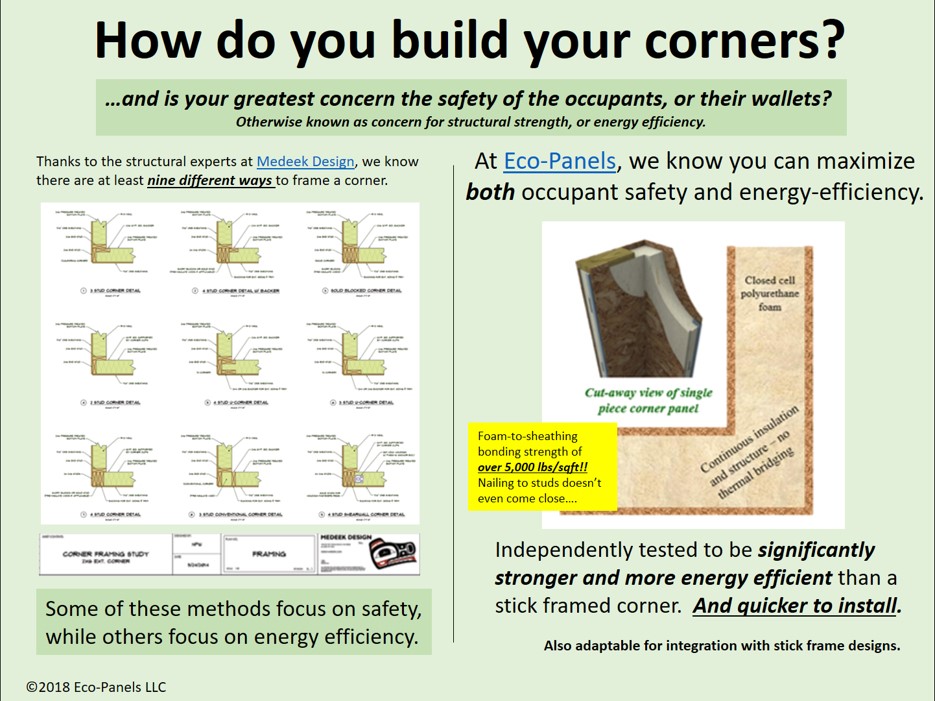

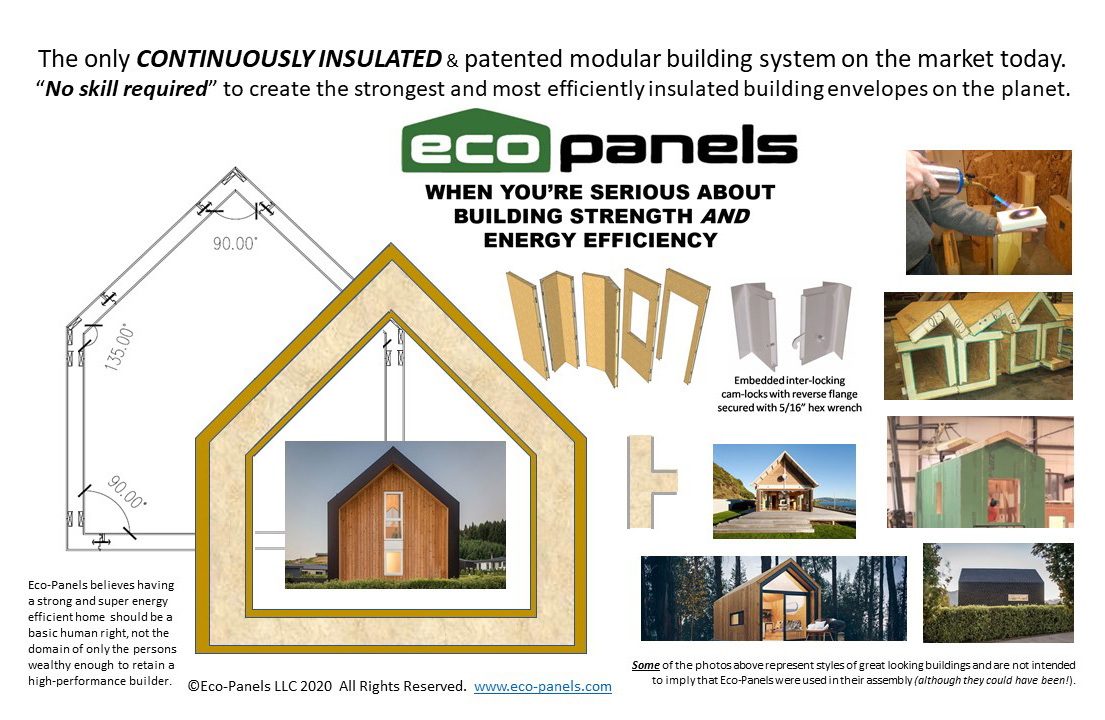

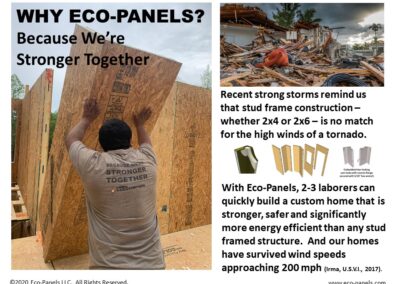

Here’s our newest two page flier and a collection of graphics that we have developed showing how eco-panels are superior to traditional stick-build construction technologies.

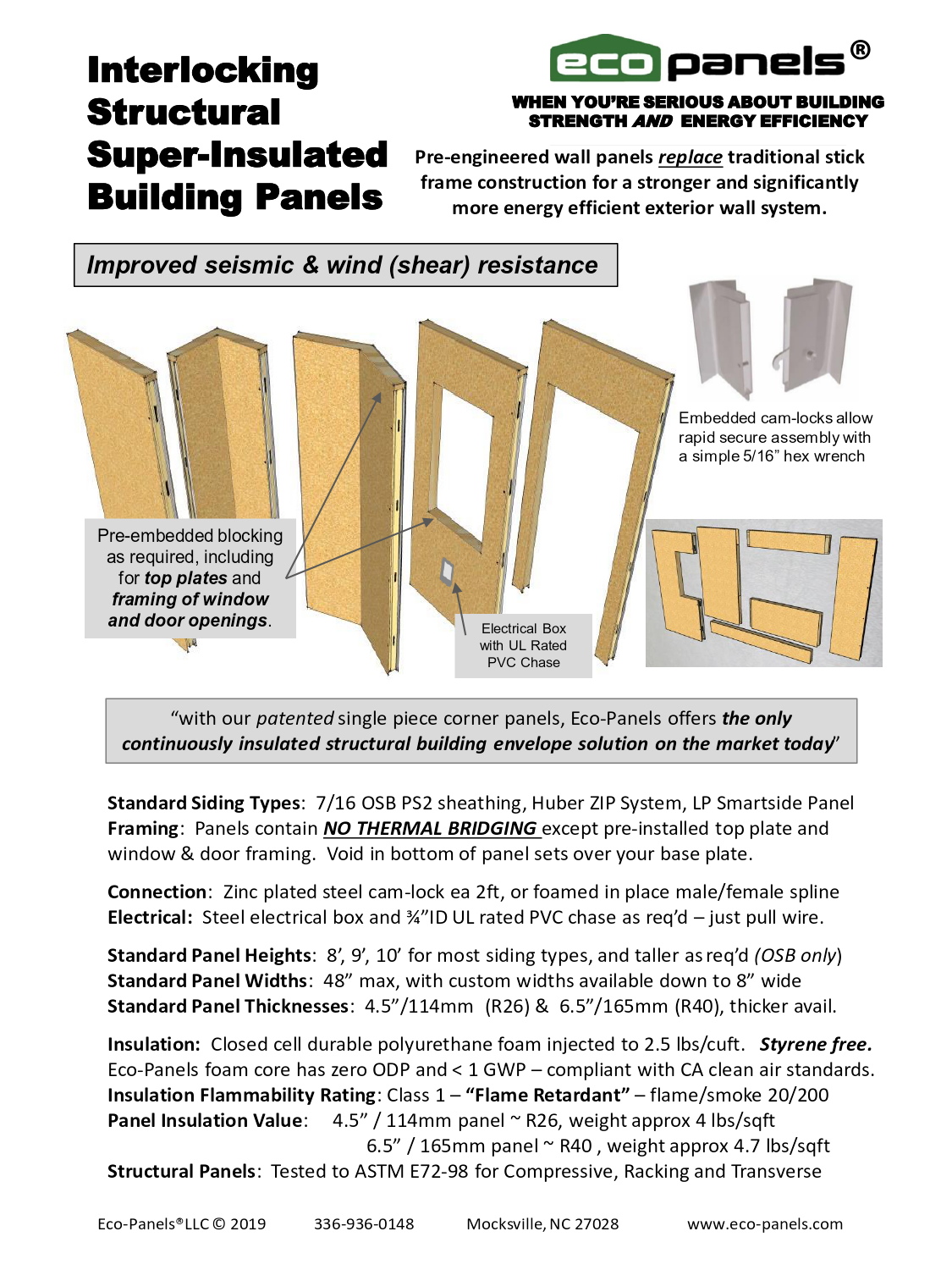

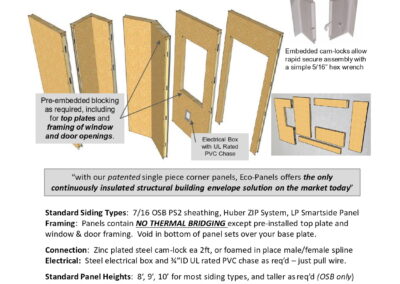

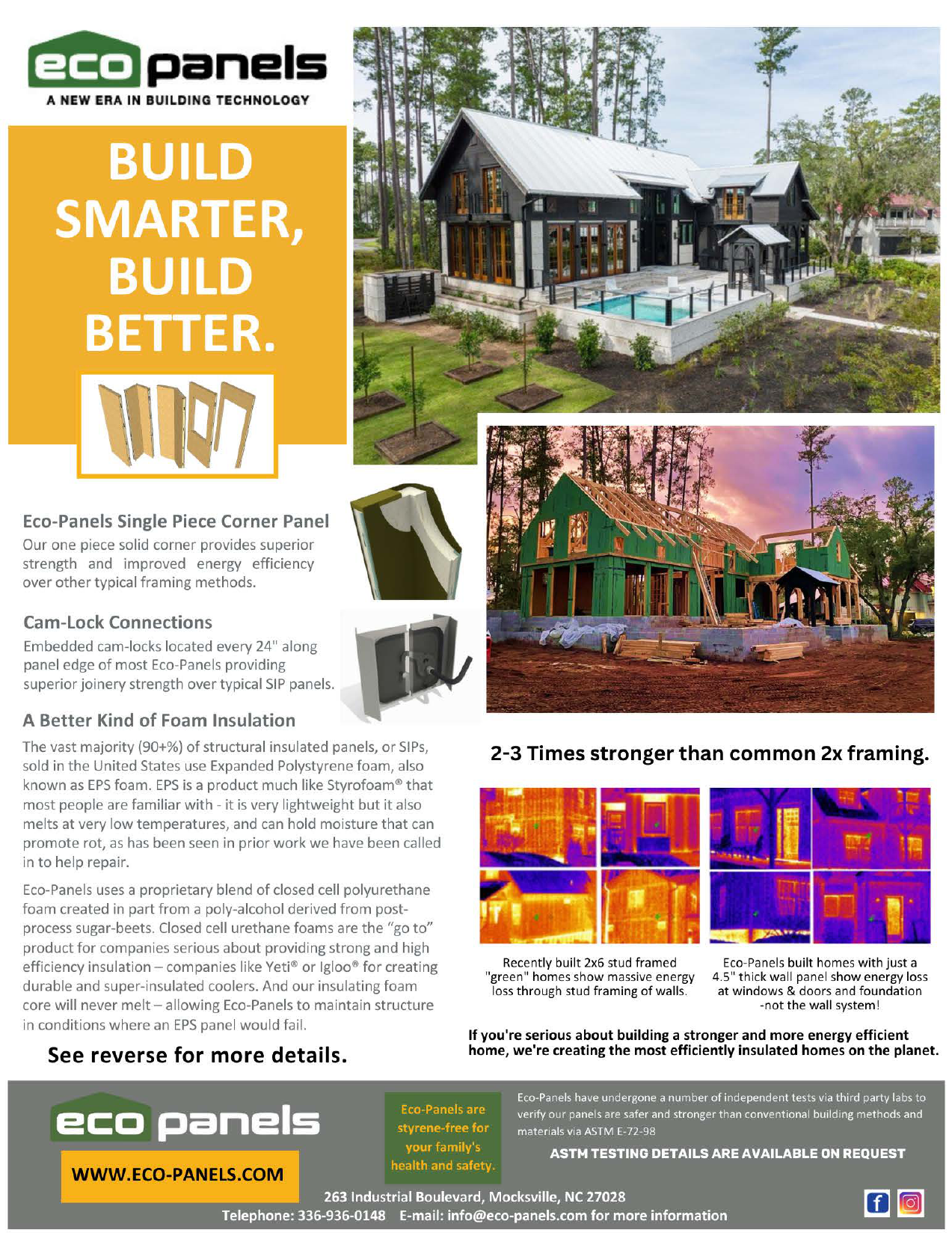

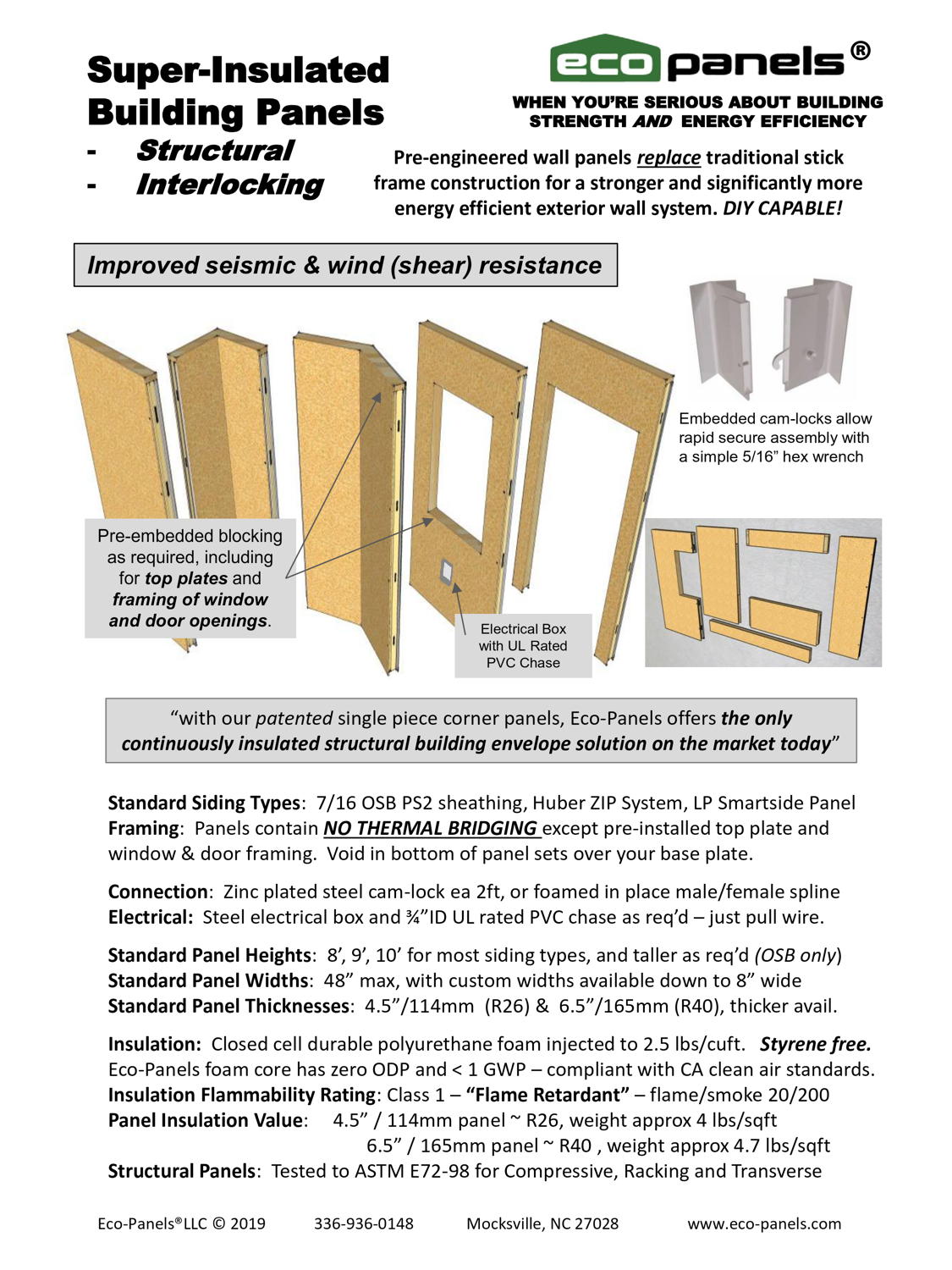

Brochure describing the Eco-Panels brand of Structural Insulated Panels (SIPs)

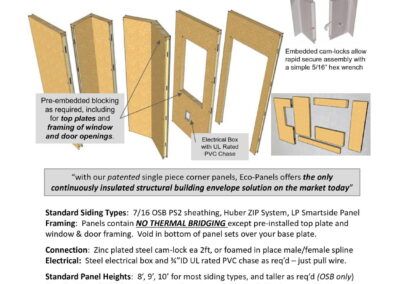

Standard Siding Types: 7/16 OSB PS2 sheathing, Huber ZIP System, LP Smartside PanelFraming: Panels contain NO THERMAL BRIDGING except pre-installed top plate and window & door framing. Void in bottom of panel sets over your base plate. Connection: Zinc plated steel cam-lock ea 2ft, or foamed in place male/female spline Electrical: Steel electrical box and 3⁄4”ID UL rated PVC chase as req’d – just pull wire. Standard Panel Heights: 8’, 9’, 10’ for most siding types, and taller as req’d (OSB only) Standard Panel Widths: 48” max, with custom widths available down to 8” wide Standard Panel Thicknesses: 4.5”/114mm (R26) & 6.5”/165mm (R40), thicker avail. Insulation: Closed cell durable polyurethane foam injected to 2.5 lbs/cuft. Styrene free. Eco-Panels foam core has zero ODP and < 1 GWP – compliant with CA clean air standards. Insulation Flammability Rating: Class 1 – “Flame Retardant” – flame/smoke 20/200 Panel Insulation Value: 4.5” / 114mm panel ~ R26, weight approx 4 lbs/sqft 6.5” / 165mm panel ~ R40 , weight approx 4.7 lbs/sqft Structural Panels: Tested to ASTM E72-98 for Compressive, Racking and Transverse
Houses in the Duke Street Cottages project, made with Eco-Panels, eligible for $5,000 tax credit.

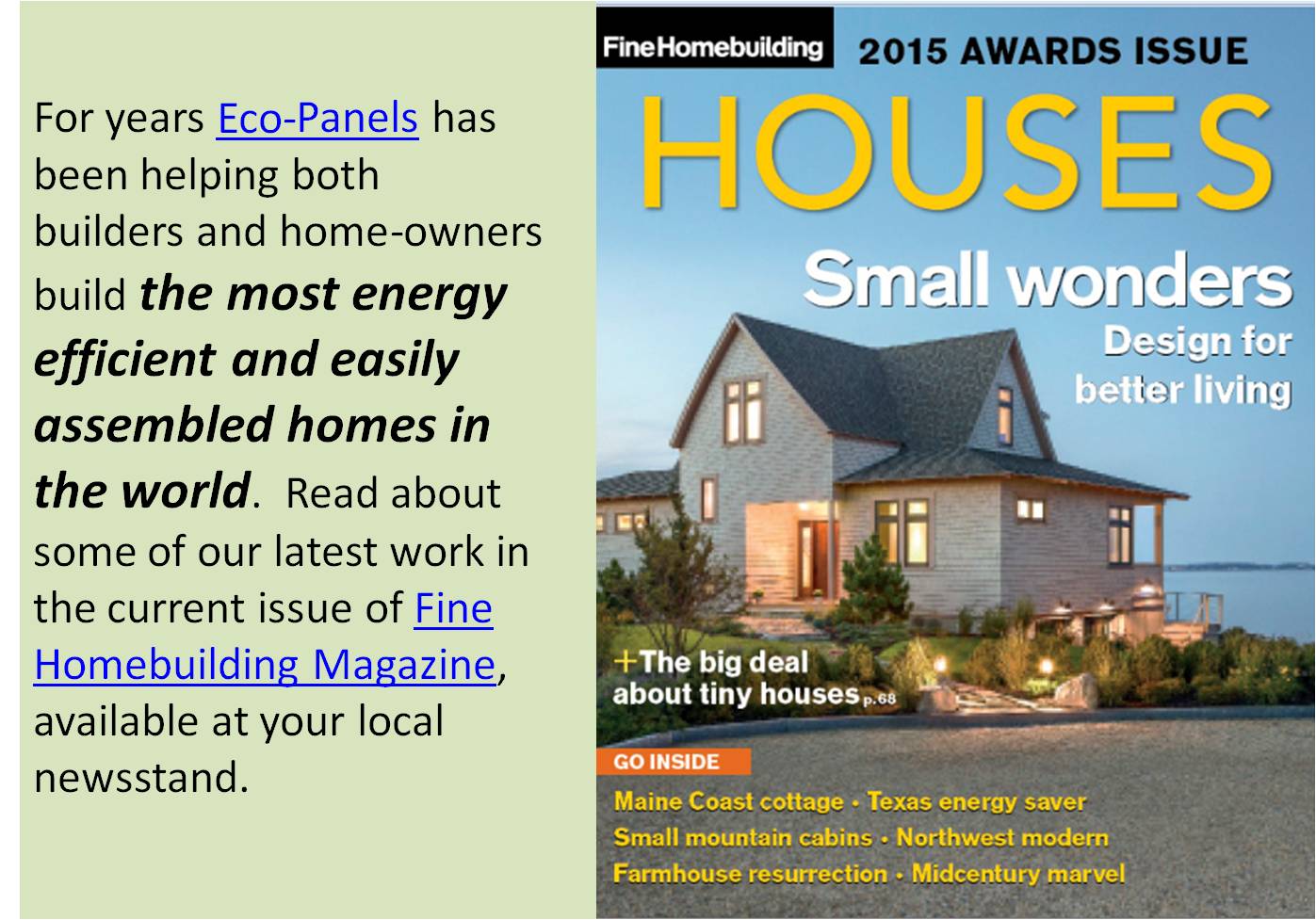

eco-panels in finehomebuilding.jpg

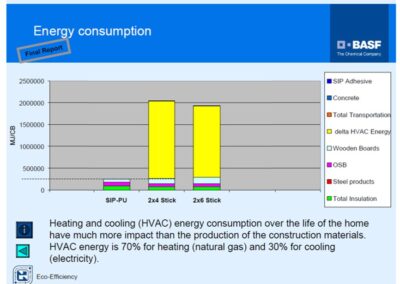

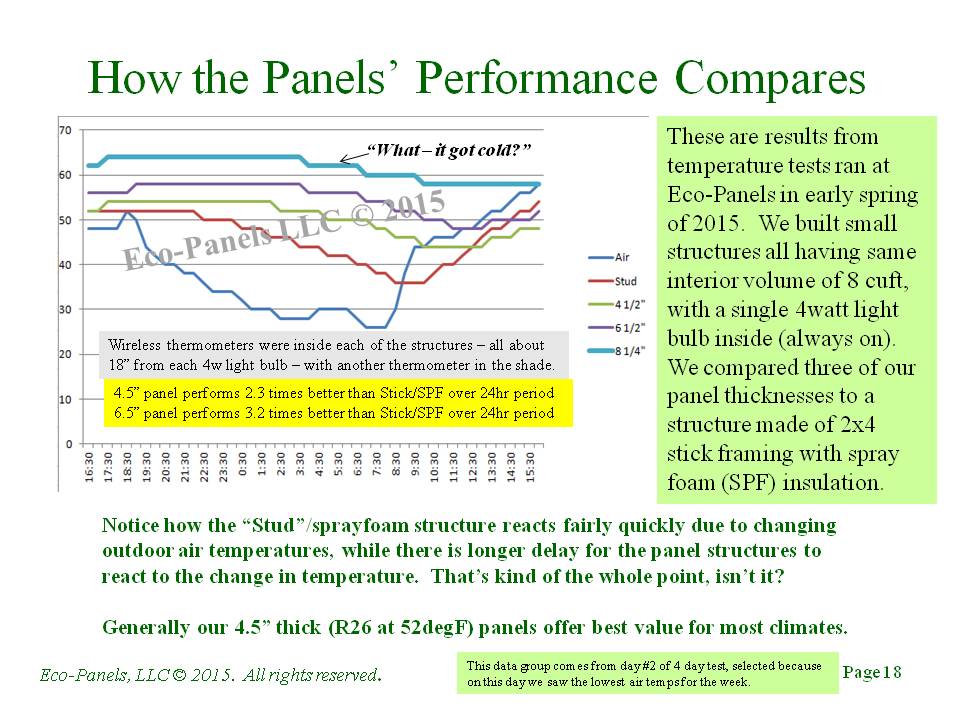

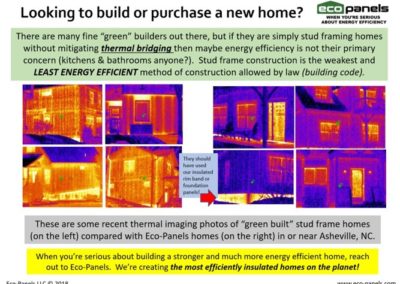

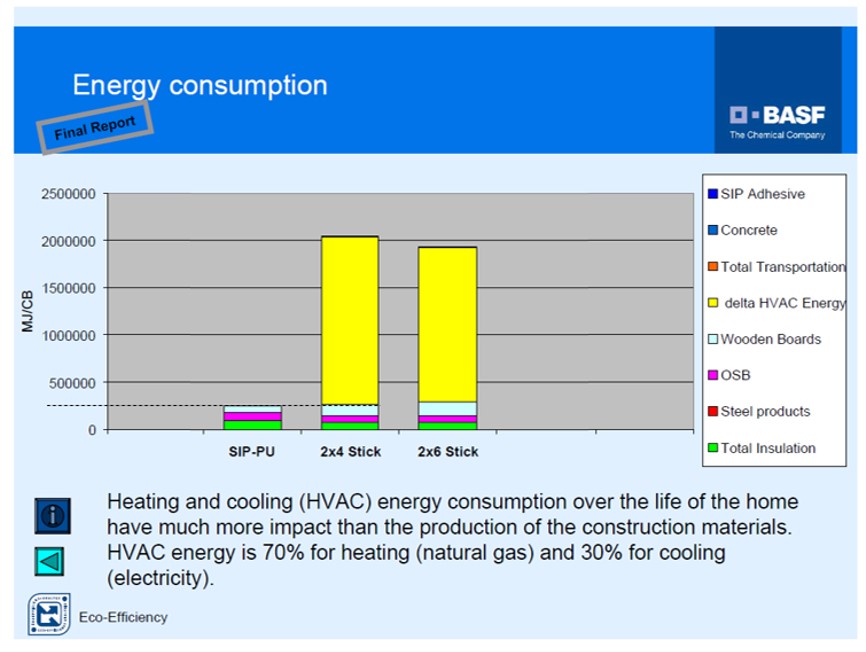

thermal energy comparison - 3-25-18 - reduced.jpg

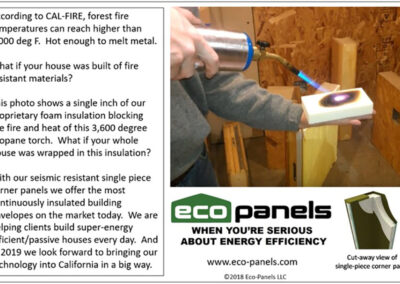

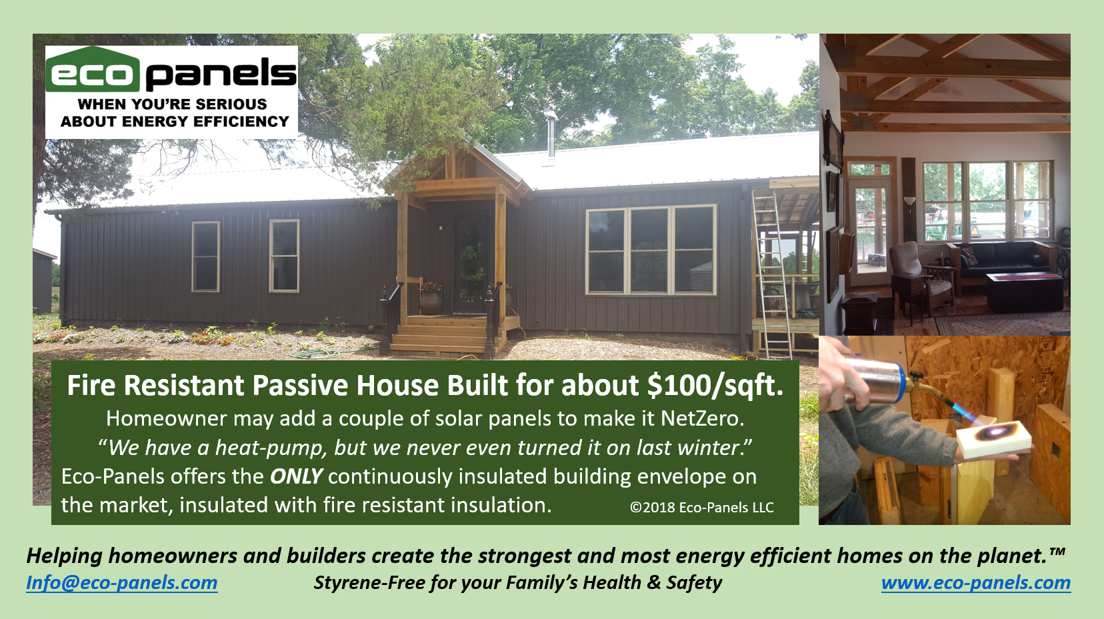

fire resistant passive house 100sqft.png
Wind Load Testing Eco-Panels at WCU

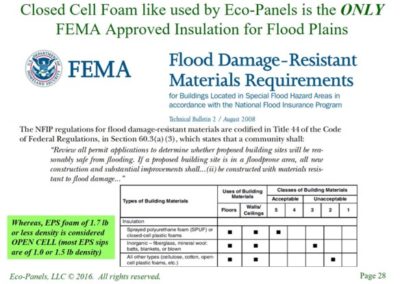

Eco-Panels closed cell foam core certified to meet the indoor clean air standards of the California Dept. of Public Health. The plant based and fire retardant rigid foam core exceeds the requirements of LEED v4. Our HFO blowing agent has no Ozone Depleting Potential (ODP) and offers

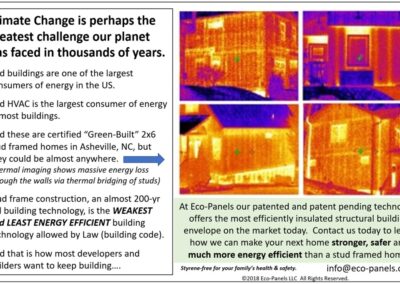

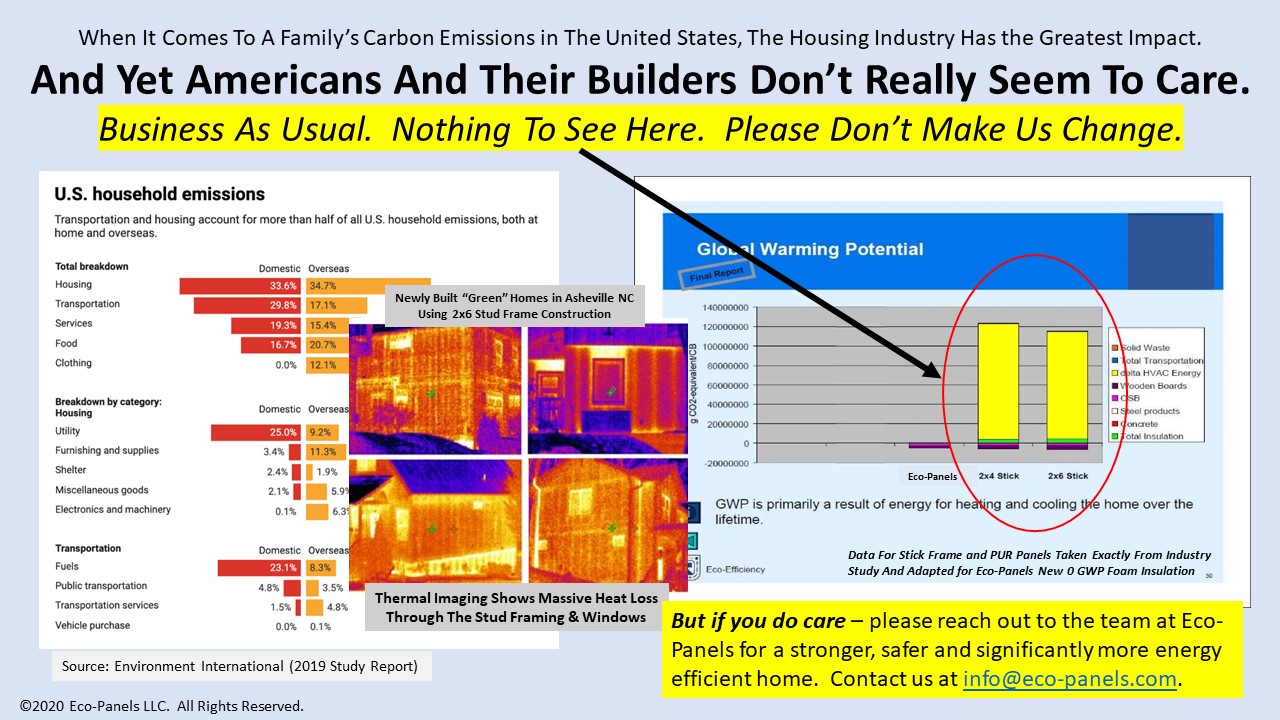

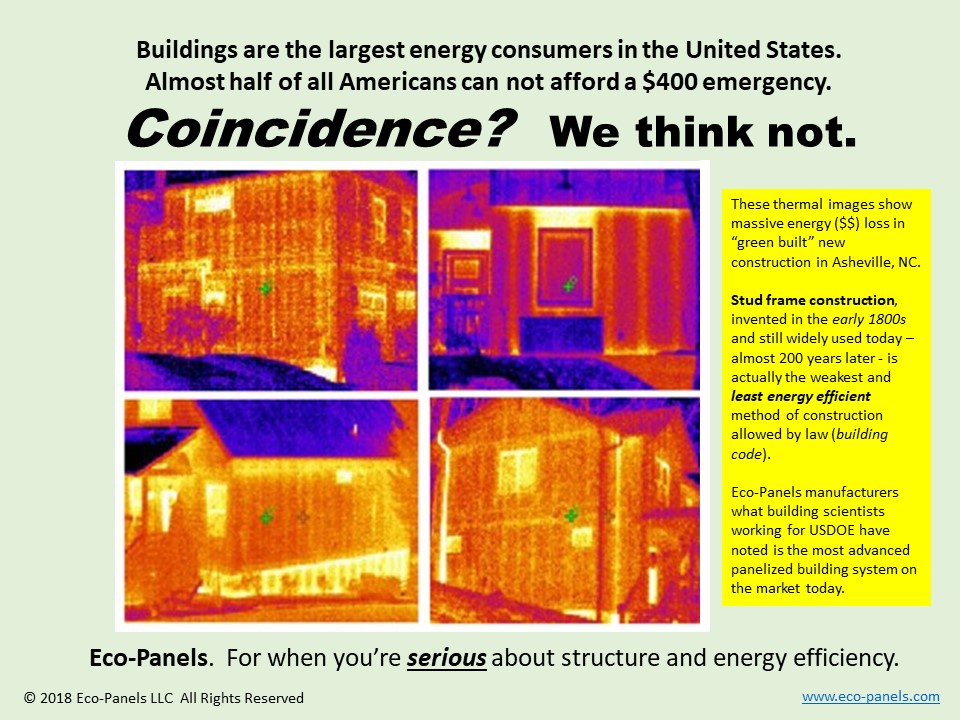

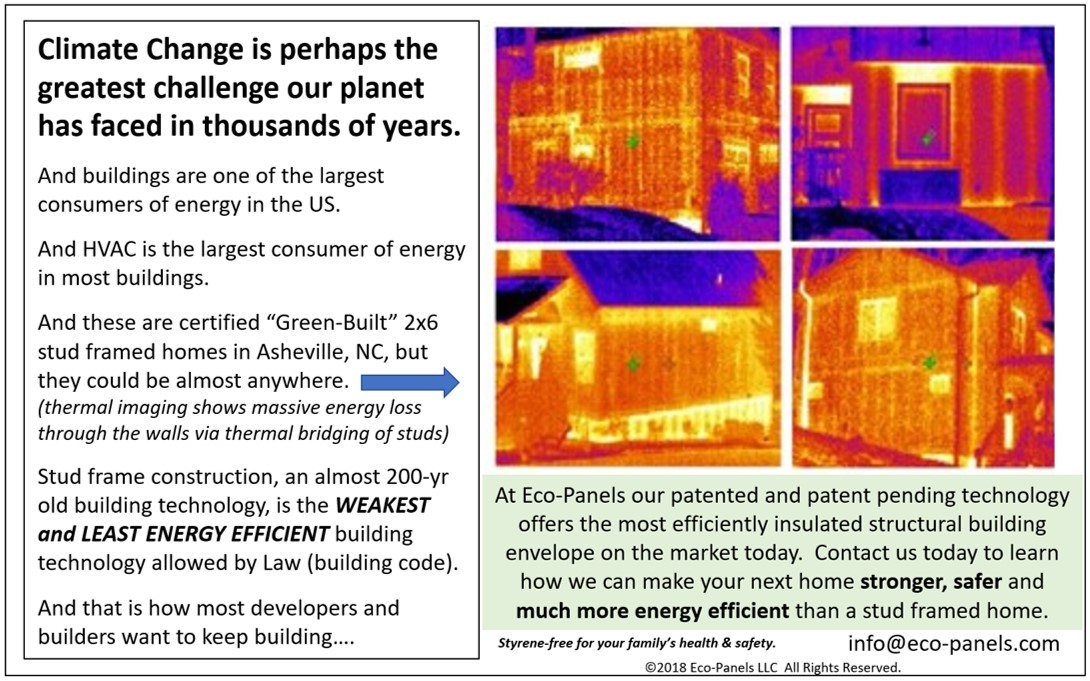

Thermal photographs showing how much heat is leaking out of stud framed houses.
Eco-Panels help revitalize struggling local economies
Eco-Panels stopped a falling tree.

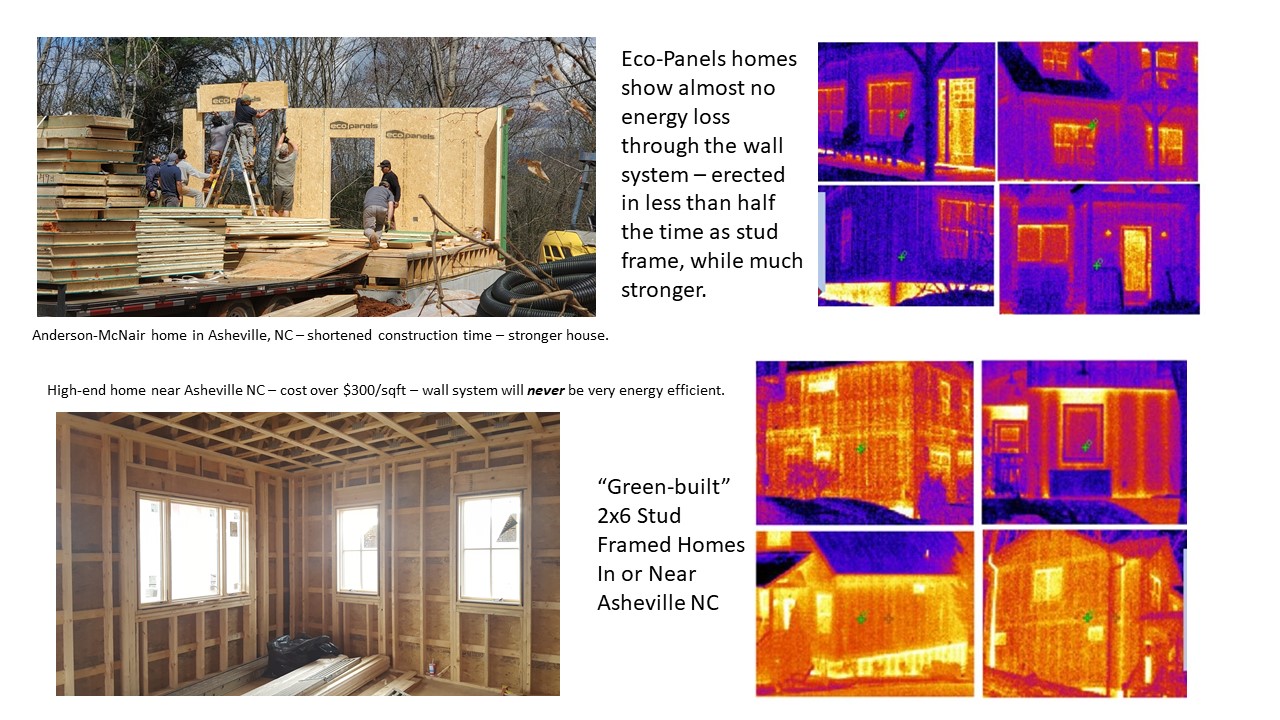

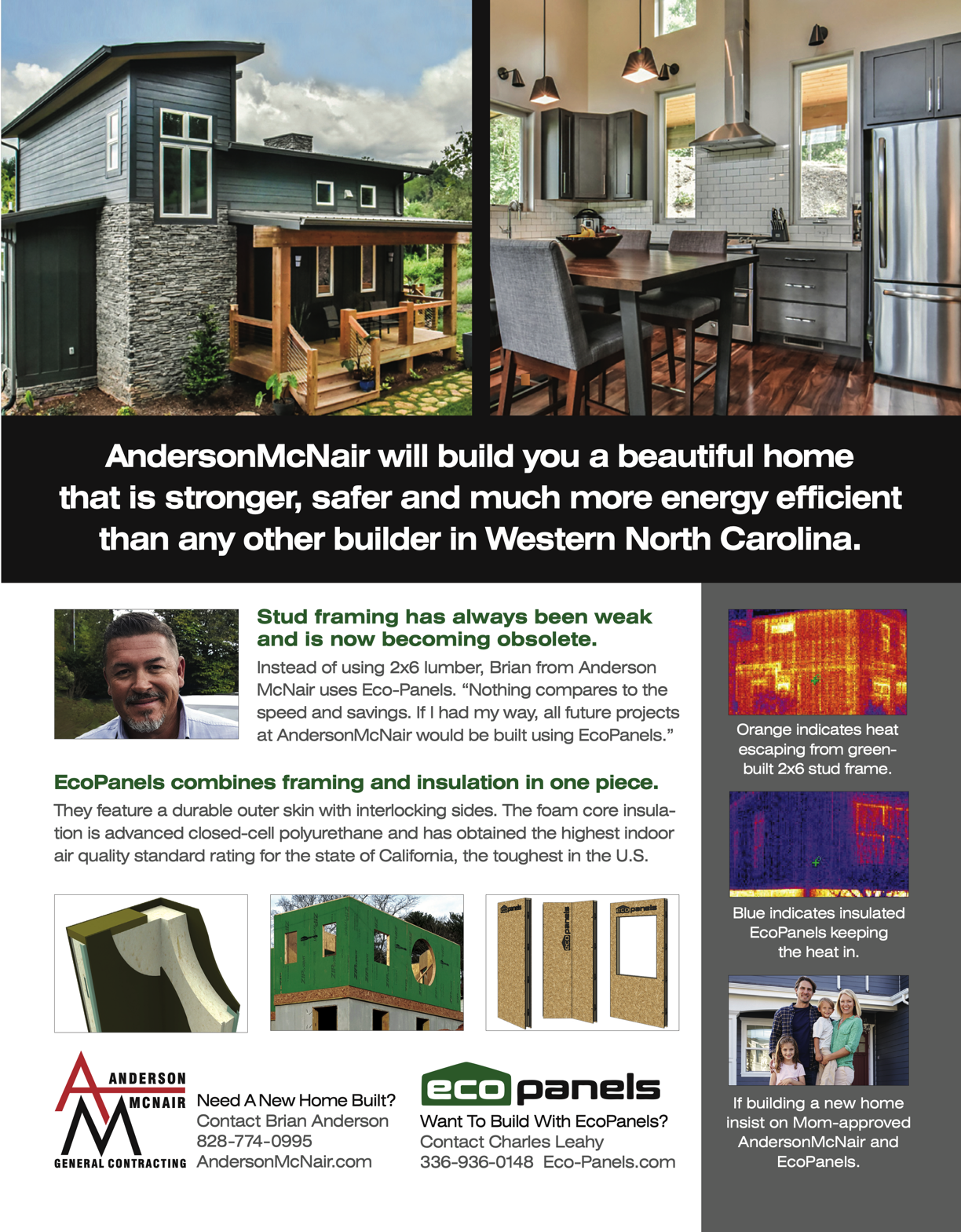

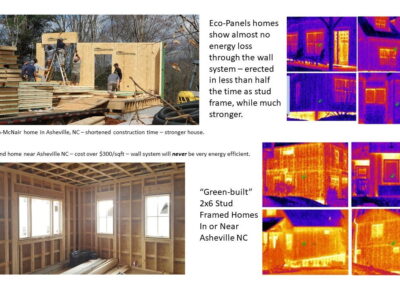

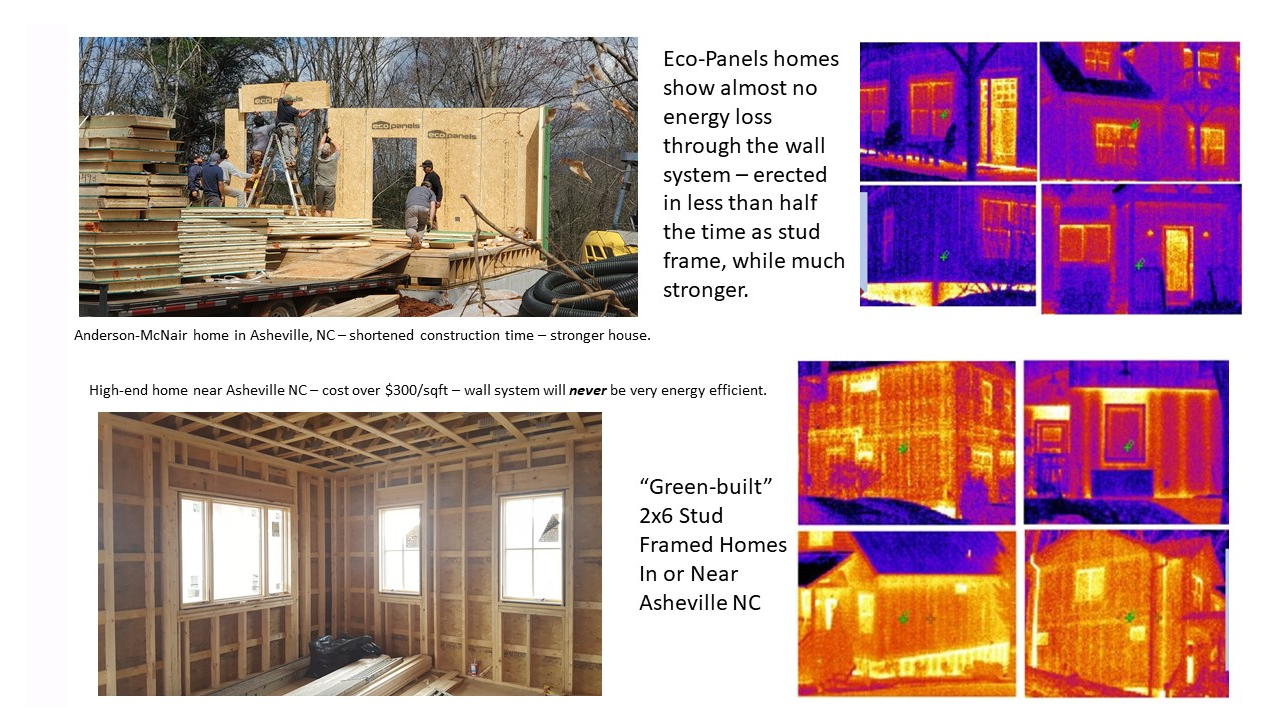

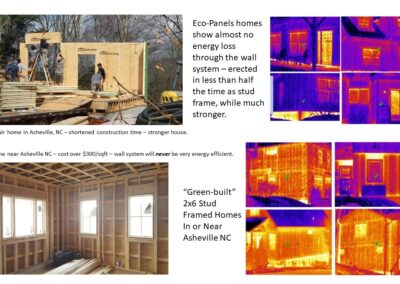

Partnership between AndersonMcNair builders and Eco Panels
